Kreg Pocket Hole Jig
Kreg K4

I love my Kreg Pocket Hole jig, but my favorite is the newest K5. If you enjoy DIY woodworking, a pocket hole jig is something that you should really consider. It makes it easy to make strong connections without needing a lot of specialty equipment. Also, the screws themselves act as a clamp, drawing the butt joints together. You don’t get that benefit from biscuits or dowels.

(This post may contain affiliate links (*). That means that I make a small commission from sales that result through these links, at no additional cost to you. You can read my full disclosure here.)

Kreg pocket hole jig makes joining wood quick and easy. Check out these 3 different systems that are available and a great demonstration for How To Use it for all your DIY, woodworking projects!



Kreg Pocket Hole Jig…

Kreg Pocket Hole Jig

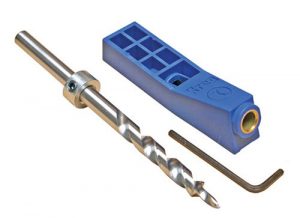

Mini Kreg

So which one to buy…… Well, the Kreg pocket hole system comes in many different packages, ranging from just the basics all the way to the complete systems. If your on a really tight budget, then the Mini Kreg Jig* is probably what you will want. Keep in mind that it only allows for one pocket hole to be drilled at a time. You will also need a clamp for this one, which does not come with it. However, the price is nice at around $20.



Kreg Pocket Hole Jig

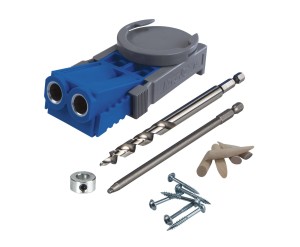

Kreg R3 Jr.

However, if you can swing it, I would suggest moving up to the Kreg R3 Jr*. It allows for double pocket holes to be drilled with each placement. It also comes with a drive bit, a selection of screws to get started with, and a clamp pad. As with the Mini Kreg, you will still need to provide a clamp*, but I believe that this is a better deal for around $40.



Kreg Pocket Hole Jig

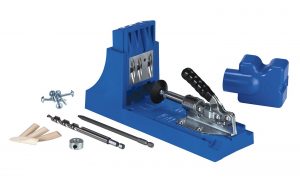

Kreg K4

The next level up would be the K4* coming it just under $100. It is by far the best value; however, I have built plenty with just the R3 Jr.  All three systems can be purchased at just about any of the big box hardware stores or at Amazon.*

Kreg Pocket Hole Jig – R3…

I wanted to provide a demonstration on one of these, and since I feel that most beginners would be inclined to purchase the R3*. So, that is the one I will use.



Kreg pocket hole jig makes joining wood quick and easy. Check out these 3 different systems that are available and a great demonstration for How To Use it for all your DIY, woodworking projects!

If you look inside the kit, you will notice that the drill bit has numbers next to it. This is to adjust the collar for the right thickness of wood. Here I have it set for 1/2″. As you can see, the top edge of the collar is lined up with the mark for 1/2.”

Kreg pocket hole jig makes joining wood quick and easy. Check out these 3 different systems that are available and a great demonstration for How To Use it for all your DIY, woodworking projects!

The guide also has numbers on the bottom. Line the arrows up with the thickness as well. Again, I have it set to 1/2″

Kreg Pocket Hole Jig R3 – Demonstration…

Kreg pocket hole jig makes joining wood quick and easy. Check out these 3 different systems that are available and a great demonstration for How To Use it for all your DIY, woodworking projects!

To use the R3, attach the clamp* through the clamp housing, align with wood edge and clamp down to table.

Kreg pocket hole jig makes joining wood quick and easy. Check out these 3 different systems that are available and a great demonstration for How To Use it for all your DIY, woodworking projects!

Next, drill through the pocket hole guides. Make sure to go all the way until the collar meets the guide.

Kreg pocket hole jig makes joining wood quick and easy. Check out these 3 different systems that are available and a great demonstration for How To Use it for all your DIY, woodworking projects!

You should now have two perfectly drilled pocket holes.

Kreg pocket hole jig makes joining wood quick and easy. Check out these 3 different systems that are available and a great demonstration for How To Use it for all your DIY, woodworking projects!

Clamp the two joining pieces of wood down, and drive the pocket hole screws through the holes using the bit that is provided with the kit.

Tip – Make sure to use the correct length and type of pocket hole screws. A fine thread is for hardwoods, and the course thread screws are for soft.

Final Thoughts…

Kreg pocket hole jig makes joining wood quick and easy. Check out these 3 different systems that are available and a great demonstration for How To Use it for all your DIY, woodworking projects!

As I said at the beginning, I love the K5 the best. At the time of this writing, the K5 is not yet available to the public. (Update: You can now purchase the new K5 at your local hardware store or through the Kreg website).

This is just a sample of the Kreg line of pocket hole systems. If you have used and/or prefer one of the others, I would love to hear your comments.
